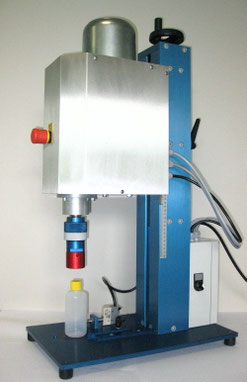

ELECTRIC SCREW CAPPING MACHINE
GRISOCAP
This electric capper guarantees secure closure of bottles, jars, etc.
When working with the GRISOCAP you will see how easy, effortless, and noiseless cap-tightening can be. A wide range of standard accessories enables the GRISOCAP to be the perfect machine for your application. If our standard capping heads do not suit - we shall create heads inexpensive and customized to your needs. Let us have some of your container samples together with approx. 10 pieces per size of corresponding caps. We shall carry out tests for you and submit a specific quotation.
FEATURES
- electrically operated table top machine for screw capping
- easy to use
- wide range of standard capping heads
- inexpensive customized capping heads for extraordinary caps
- adjustable torque
- standard version - release by positioning the container in the center
- CE version - electro-magnetic container holder and bi-manual release
- REV version - screw- and unscrew feature
- special designs on request - e.g. protection covers or integration in packaging lines
THREE GRISOCAP MODELS ARE AVAILABEL
GRISOCAP
release of working process by pushing the previously filled of the container against the positioning (centering) aid
GRISOCAP CE
pneumatic jaws to hold the containers and bi-manual release of the working process
(upon request electro-magnetic version available)
GRISOCAP REV
with additional reverse function (screw and unscrew)
HOW THE CAPPER WORKS
The cap is placed on the previously filled container and the container is pushed against the positioning (centering) aid, resp. placed in the holder (CE model). Within the release of the screwing process the spindle with the adjustable clutch and the fitted capping head descends onto the cap, tightens it securely and returns to its starting position.
| TECHNICAL DATA | |
|
TYPE OF EQUIPMENT |
Screw capping machine |
| TYPE OF CONTAINER | Bottles and tins with screw caps/lids |
| PRODUCT APPLICATION | Effortless and noiseless cap-tightening |
|
RANGE OF APPLICATION |
Pharmacies, drugstores, R&D laboratories, cosmetics, pharmaceutical, chemical and food industry |
| FEATURES | Table-top unit |
| SPECIAL FEATURE | REV-model with additional unscrew function available |
|
CONTAINER DIMENSIONS |
H max. 350 mm (max. 13,77 in) H max. 280 mm (max. 11,02 in) CE-Modell Ø max. 100 mm (max. 3,93 in) Depth of thread approx. 35 mm (approx. 1,37 in) |
| ACCESSORIES | Many different standard capping heads |
|
TORQUE RANGE |
0.5 up to 5 Nm |
| PERFORMANCE | Up to 2'800 closures p/h |
| DIMENSIONS | W 300 mm (11,81 in) / D 500 mm (19,68 in) / H 920 mm (36,22 in) |
| WEIGHT | approx. 45 kg (approx. 99,20 lb) |
|
CONNECTION VALUE |
3x400 VAC, 50/60 Hz or 3x200 VAC, 50/60 Hz |
| Errors and omissions excepted | |
